Lancia Delta HF integrale Ignition Leads 8V - 16V
Lancia Delta HF integrale Ignition Leads 8V & 16V

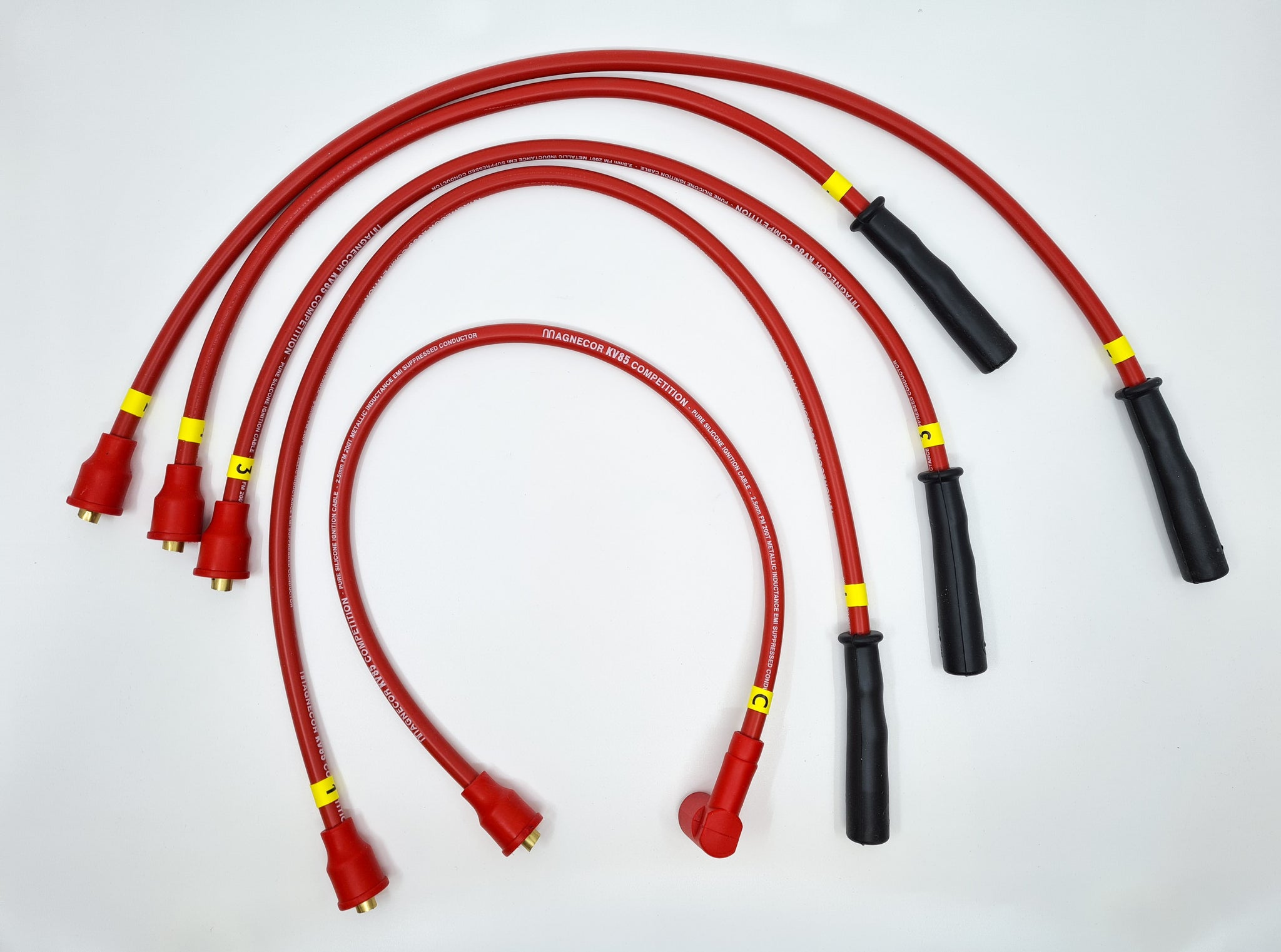

Heavy Duty 8.5 mm Racing silicone gnition Leads Full Set
Race Cables feature exclusive 2.5mm high capacity Metallic Inductance EMI Suppressed conductor consisting of stainless steel wire precisely wound at 200 turns per inch over an insulated ferromagnetic core. The insulating jacket is made entirely of exclusive TC-1500-HS high strength aerospace grade silicone rubber, and its single layer construction will prolong the jacket's insulating ability by conducting extreme heat away from hot-spots that occur near over-the-limit heat sources. Some people have remarked that the cable jacket feels "soft," however, this is the nature of the particular silicone rubber used. It does help when these 8.5mm cables are fitted to 7mm OE cable retainer/dividers, as the cable is less likely to cause breakage.
The KV85 8.5mm jacket has a service heat resistance of 600 degrees F (320 degrees C) and up to 1,000 degrees F (540 degrees C) for short burst 3 minutes. The R-100 10mm jacket has a service heat resistance of 700 degrees F (380 degrees C) and up to 1,200 degrees F (650 degrees C) for short burst 3 minutes. Even if limits are exceeded, the silicone rubber will retain its insulating ability until wires are removed from engine.
Race Wires are primarily designed and constructed to be used in applications where it is essential to prevent the possibility of ignition wires compromising engine performance. Modern race engines, modified street engines, overheating prone LPG conversions and stock street engines which rely on electronic devices to control the function of either or both the ignition and fuel systems are prone to interference from all other spiral conductor ignition wires sold through performance parts outlets, none of which can provide proper suppression for EMI, particularly if a high-output ignition system is used.
Note: We always recommend use of our Race Wires for any stock or modified late model street engine that is electronically managed, however most other modified or street engines can also use our Race Wires to improve ignition performance
