Lancia Delta HF integrale - Siemens DEKA 840 cc/min Injector Set (4)

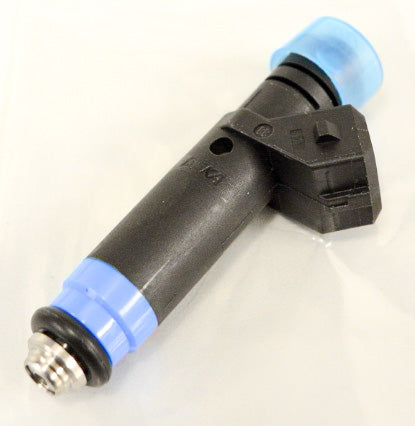

Siemens DEKA 840 cc/min Injector Set for Lancia Delta

High-flow capacity for demanding builds, supplied as a matched set of four.

Equip your Lancia Delta performance project with genuine Siemens DEKA high-flow injectors. With a nominal 840 cc/min flow rating, a multiple-spray pattern and high-impedance design, this kit offers greater injector capacity for a carefully specified and calibrated fuel system.

Key features and benefits

• 840 cc/min nominal flow: high-flow capacity for applications with increased fuel demand.
• Matched set of four: dynamically flow-tested and grouped within 1% tolerance to support consistent cylinder-to-cylinder fuelling.
• Genuine Siemens DEKA: the injector specification supplied in this kit.
• High-impedance design: compatible with the factory Marelli injector drivers in the listed applications.
• Multiple-spray pattern: supports a carefully mapped performance setup.

Application and calibration

For Lancia Delta performance applications using the appropriate factory Marelli injector drivers. Driver compatibility also extends to Alfa Romeo 155 Q4 and Fiat Coupe applications. Confirm dimensions, connector, seals and fuel-rail fitment before ordering.

ECU recalibration is required. The original IAW fuel map must be adjusted for the injector flow and operating characteristics. Starting, idle quality and safe fuelling under load depend on correct calibration and a fuel system matched to the engine.

Flow matching and test conditions

Each set contains four dynamically tested injectors grouped within 1% tolerance using a custom injector flow bench. Stated test conditions: n-heptane at 20°C (±1°C), 3.0 bar (±0.01 bar), 14 V DC (±0.05 V), using a saturated driver with RC cutoff.

The 840 cc/min figure is a nominal flow rating. Actual delivery depends on fuel type, differential fuel pressure and operating conditions. Compare injector ratings at equivalent test conditions and select capacity for the engine's fuel demand, not a universal horsepower figure.

What is included?

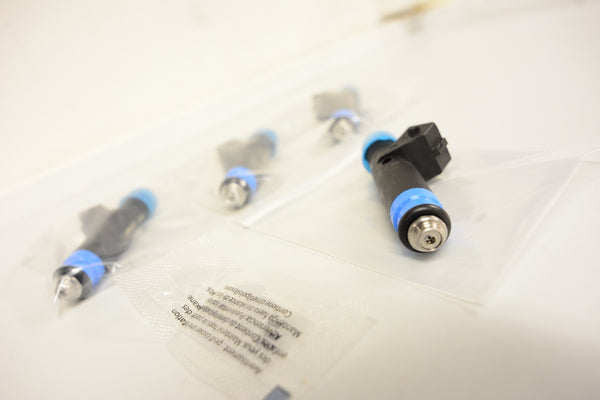

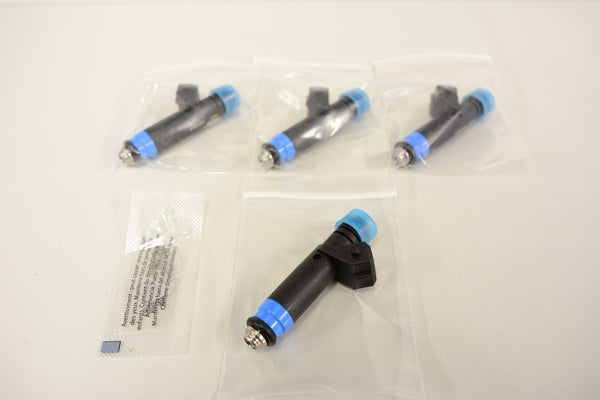

One kit of four dynamically flow-tested, matched injectors. The displayed price is for the complete set, not one injector.

Professional installation and ECU calibration recommended. Check pump capacity, fuel pressure, sealing and air/fuel ratio before operating under load. E85 or methanol suitability must be confirmed for the exact injector model and complete fuel system.
