917375-5004W Lancia Delta HF Turbo Integrale
NEW Turbo for Lancia Delta, Alfa 155Q4, Dedra Turbo and Integrale and also the Fiat Coupé 16V

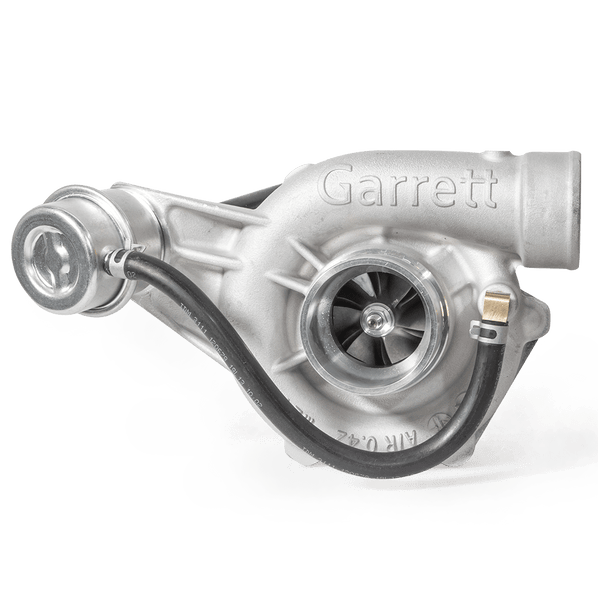

Lancia Delta - Garrett T3 NEW 917375-5004W

Regular price €1.995,00 €0,00
Tax included. Shipping calculated at checkout.

NEW Lancia Delta | Dedra | HPE | 155 Q4 - Garrett Turbocharger T3

NEW Lancia Delta HF Turbo Features

The Garrett | Classic Turbo Series Part #17375-5004W incorporates modern engineering and durability with plug and play install for all the Lampredi engine based catalitic versions from the Lancia Delta HF Integrale 8V, 16V, Lancia Dedra Integrale and Turbo to the Alfa 155 Q4 Turbo and last but not least the Fiat Coupé 16V.  The all NEW center housing rotating assembly CHRA  is now using a 360° thrust bearing setup from factory for improved reliability compared to the old units. The new setup has also a integrated actuator bracket built into the compressor housing to strengthen and give consistent boost pressure control.

The Turbo 917375-5004W Features

• 360° Thrust bearing setup for improved reliability and durability of
the rotating assembly in extreme operating conditions compared to the old setup as used in the Lancia, Fiat and Alfa models
• Wastegate actuator bracket cast into the compressor housing
for improved stiffness and reliability of the boost control in severe conditions
• New turbine housing, engineered using of better casting process and material designed with thermal simulations to avoid cracks and failures in the housing
• Includes gasket kit 917890-0001 (Turbine inlet, oil inlet, oil outlet)
• Plug and Play installation


A modification and upgrade based on this new core can be done to existing turbos: Larger compressor wheel options such as our Kit 280 Turbo additionally with cut back of the turbine wheel can be performed to reduce back pressure in high boost and RPM applications. Please contact us for any enquiries:

We recommend modifying the turbo intake to get the best results. To get rid of the “Duck Pecker” consult our tuning guide. Click me Guide


Reference Model Table Year Garrett DSR PN Garrett PN OE PN

Lancia Delta HF Integrale 8V with catalytic converter with engine code 831C5046
Lancia Delta HF Integrale 16V EVO2
with engine code 831E5046


1989-1994 971375-5004W 465103-5003S 76317230
465103-5004S 77202760
465103-5006S  76863370
465103-5009S 77294710

Lancia Dedra 2.0L Integrale

Lancia Dedra 2.0 Turbo

1991-1994 465103-5009S 77294710
Alfa 155 2.0L Q4 16V Turbo 1992-1994 465103-5004S 77202760
Fiat Coupe 2.0L 16V Turbo 1993-1996 1993-1996 465103-5004S 77202760
