Lancia Delta 16V - Maranello Exhaust Manifold
Lancia Delta - Maranello Exhaust Manifold

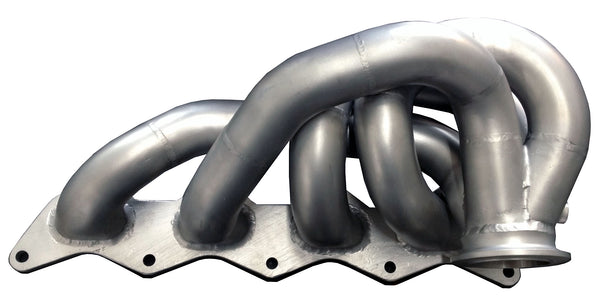

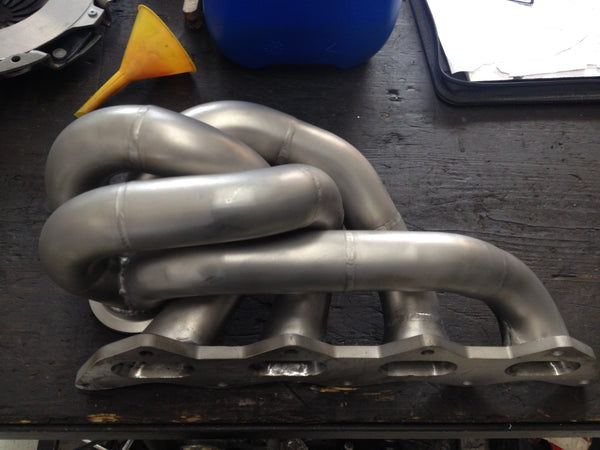

The Speedshop.ch Lancia Delta Holzer Style Exhaust Manifold is made exclusively for and revisited by us in Maranello, like it's name already suggests. It is designed to use less welded joints as possible thanks to the high quality stainless steel mandrel bend tubing’s and stainless steel flange. This setup allows to achieve the best performance to weight ratio. Keeping weight down using less thicker wall tubings as our 304 version. This manifold is also available as a Inconel version.

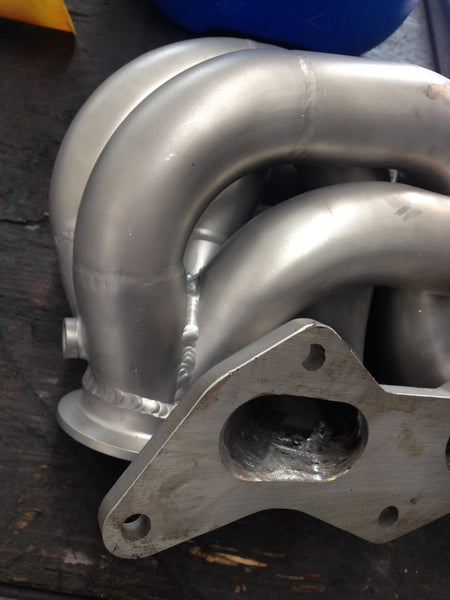

Our Maranello manifolds are designed with a 37mm inner diameter, to cope best with the 45mm exhaust ports of the Lancia Delta 16V head. The choosen diameter, allows to get a less sharper bends on the 4th cylinder. The flange itself, as an additional plus, is CNC machined already to allow for a smooth transition. Another plus is thank's to the more invasive tubings, the whole manifold is build far more compact as other manifolds that feature similar internal tube diameters.
These headers follow the firing order in a downward circle producing a "scavenging" effect. When an exhaust gas pulse exits a header tube into the collector, a negative pressure wave is created that travels back up the header tube to the exhaust port during valve overlap. This negative pressure helps pull any remaining exhaust gas from the cylinder and also helps draw the incoming intake charge into the cylinder.
Average power gains are noticable over the whole RPM range, especially large turbo application will benefit fitting one of our manifolds. Especially compared to standard type 4-1 manifolds.

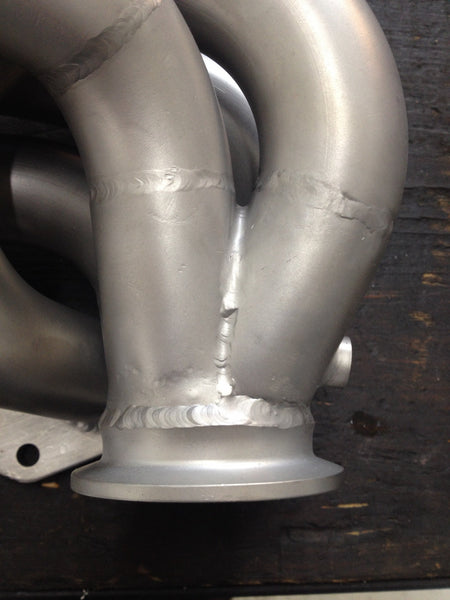

Our V-Band option features a Stainless Steel CNC machined Exhaust Merger. This will reduce the fatigue in the Merger section which is generally prone to cracks.
Optional it is also possible to Coat the manifold, with standard or Zircotec coatings, pls. enquire directly via eMail: firstname.lastname@example.org
We supply a Multi Layer Steel MLS exhaust gasket alongside with the Exhaust Manifold if sold separately € 75.-
The manifold can be ordered in mainly three Turbo flange variations, which are the following: T2, T3 and CNC V-Band.
Due to space restrictions, we highly recommend to fit a low profile SPAL Radiator Fan. Further to gain more space between manifold and Radiator/Fan, we recommend to install spacers on the top Radiator brackets, giving so more clearance. This operation on A/C equipped cars, needs to be carried out carefully, as space is further limited up front by the A/C heat exchanger.
