Lancia Delta HF integrale - 505 cc/min Matched Injector Set (4)

505 cc/min High-Flow Injector Set for Lancia Delta HF integrale

Four matched injectors. More fuel-delivery capacity for your next engine build.

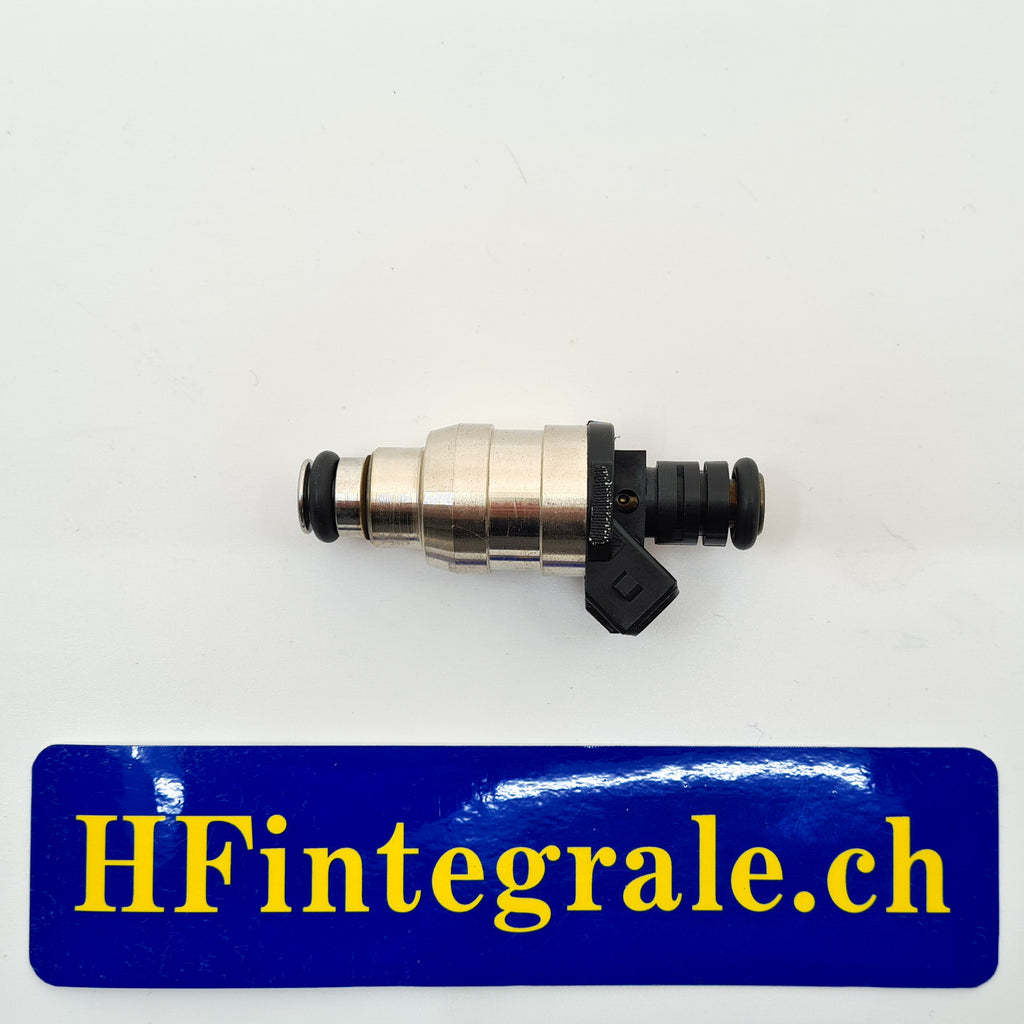

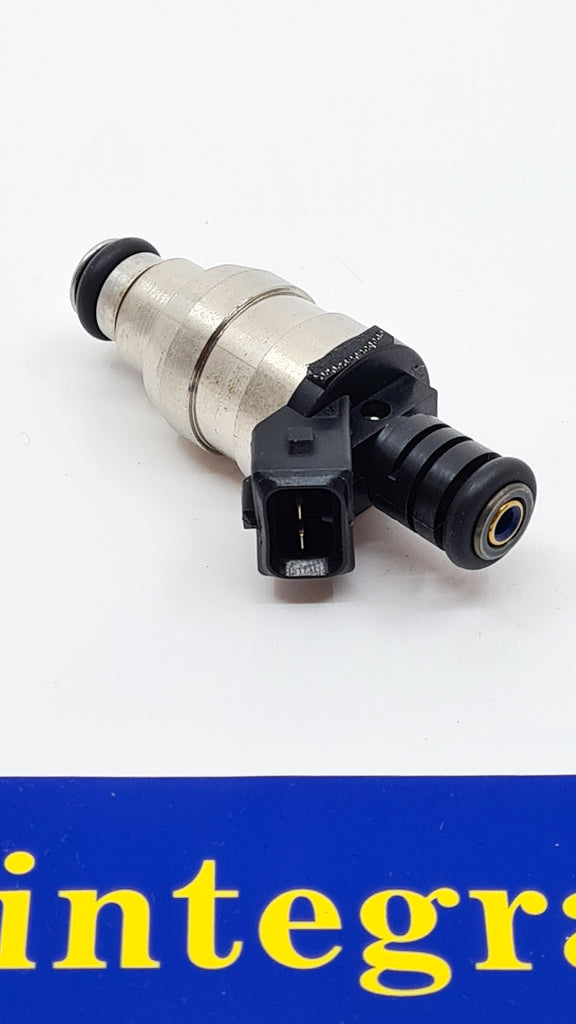

Upgrade your Integrale's fuel system with this set of four high-impedance, disc-style injectors. With a nominal flow rating of 505 cc/min and a tri-cone spray pattern, they offer an option for performance builds that require greater injector capacity.

Key features and benefits

• Matched set of four: dynamically flow-tested and grouped within 1% tolerance to support consistent cylinder-to-cylinder fuelling.
• 505 cc/min nominal flow: additional fuel-delivery capacity for a correctly specified performance setup.

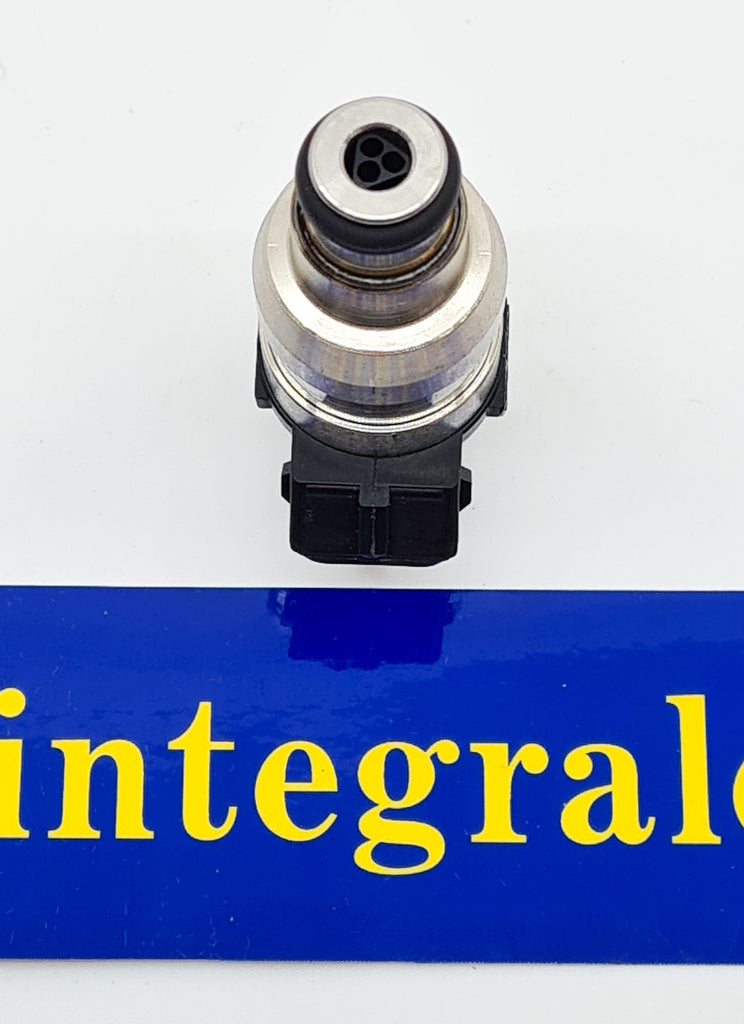

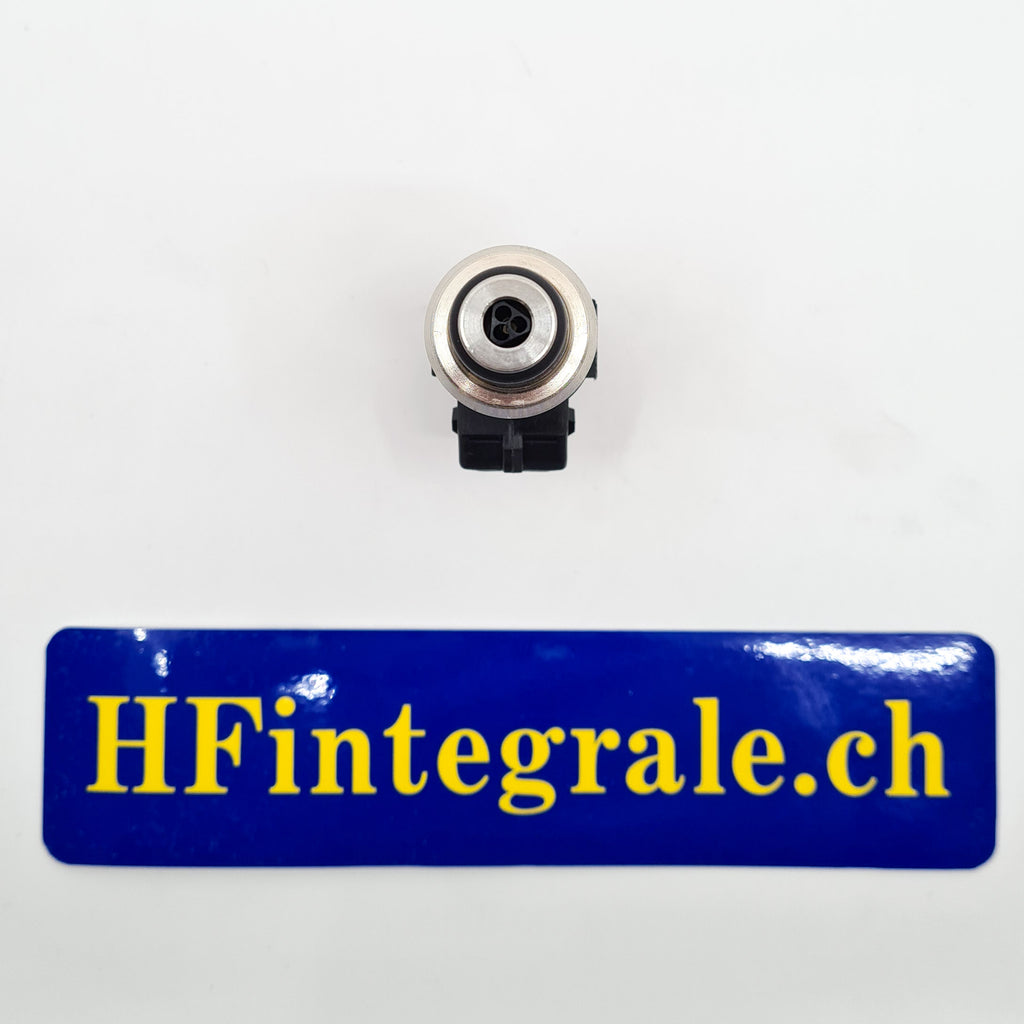

• Disc-style nozzle: designed to resist deposit build-up.
• High-impedance design: compatible with the factory Marelli injector drivers used in the listed applications.
• Installation aid included: grease supplied for lubricating the O-rings before fitting.

Application and calibration

For Lancia Delta HF integrale performance applications. Electrical driver compatibility also extends to the factory Marelli systems in Alfa Romeo 155 Q4 and Fiat Coupe applications; confirm the connector, dimensions, fuel-rail fitment and seals before ordering.

ECU recalibration required: these higher-flow injectors are not a fit-and-forget replacement on the original fuel map. The IAW ECU fuel calibration must be adjusted for the injector flow and operating characteristics. Correct mapping is essential for starting, idle and fuelling under load.

Flow matching and test conditions

Each kit contains four dynamically tested, flow-balanced injectors grouped within 1% tolerance. Stated test conditions: n-heptane at 20°C (±1°C), 3.0 bar (±0.01 bar), 14 V DC (±0.05 V), using a saturated driver with RC cutoff.

Fuel delivery in the vehicle depends on fuel type, differential fuel pressure and operating conditions. Select injector capacity to match the engine's fuel demand rather than a universal horsepower figure.

Alternative fuels

The injectors are listed as compatible with E85 and methanol. This does not make the complete vehicle fuel system compatible: check hoses, seals, pump, regulator and calibration for the intended fuel.

What is included?

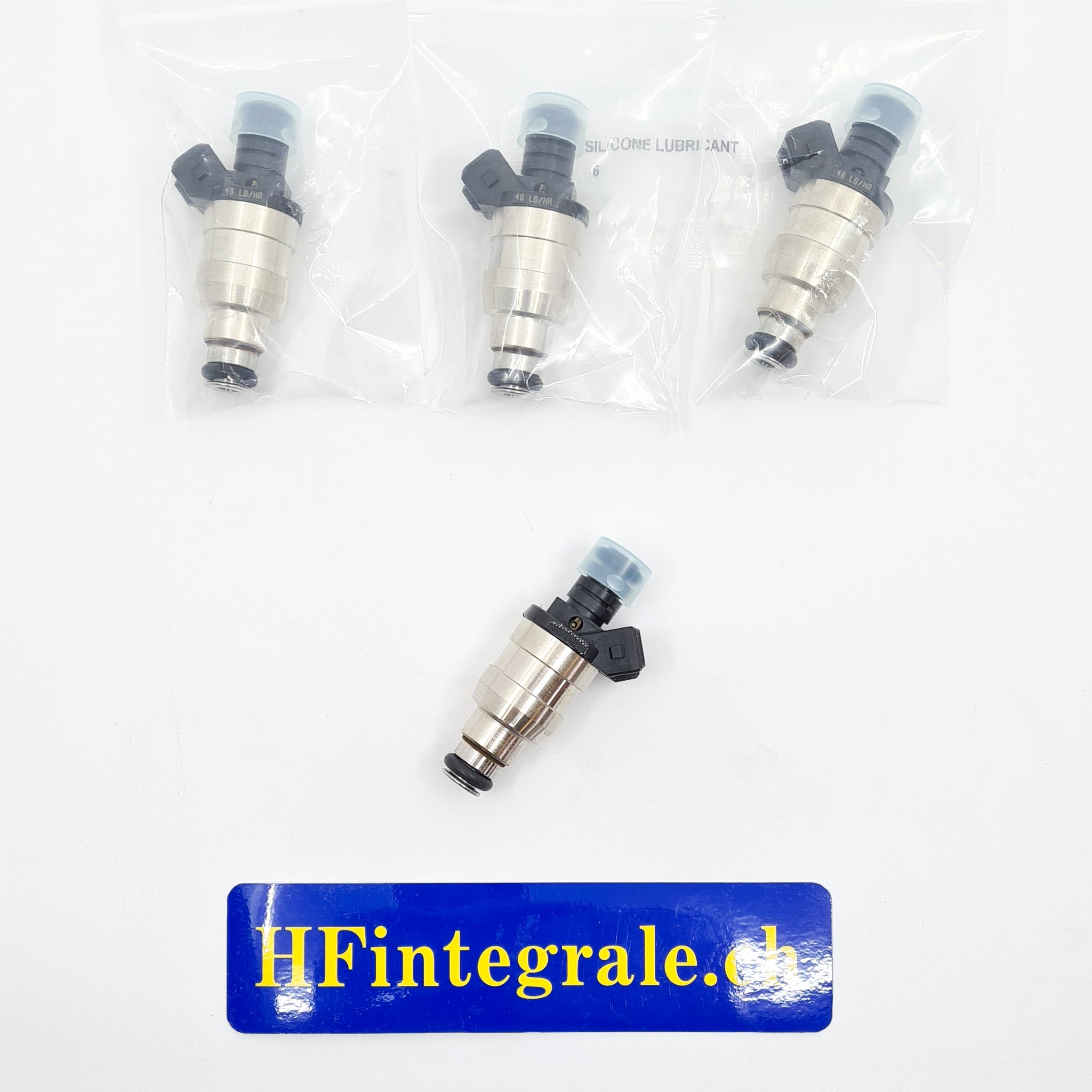

One kit of four flow-matched injectors, with O-ring installation grease. The displayed price is for the complete four-injector set, not one injector.

Professional installation and ECU calibration recommended. Check sealing, fuel pressure and air/fuel ratio after installation.
